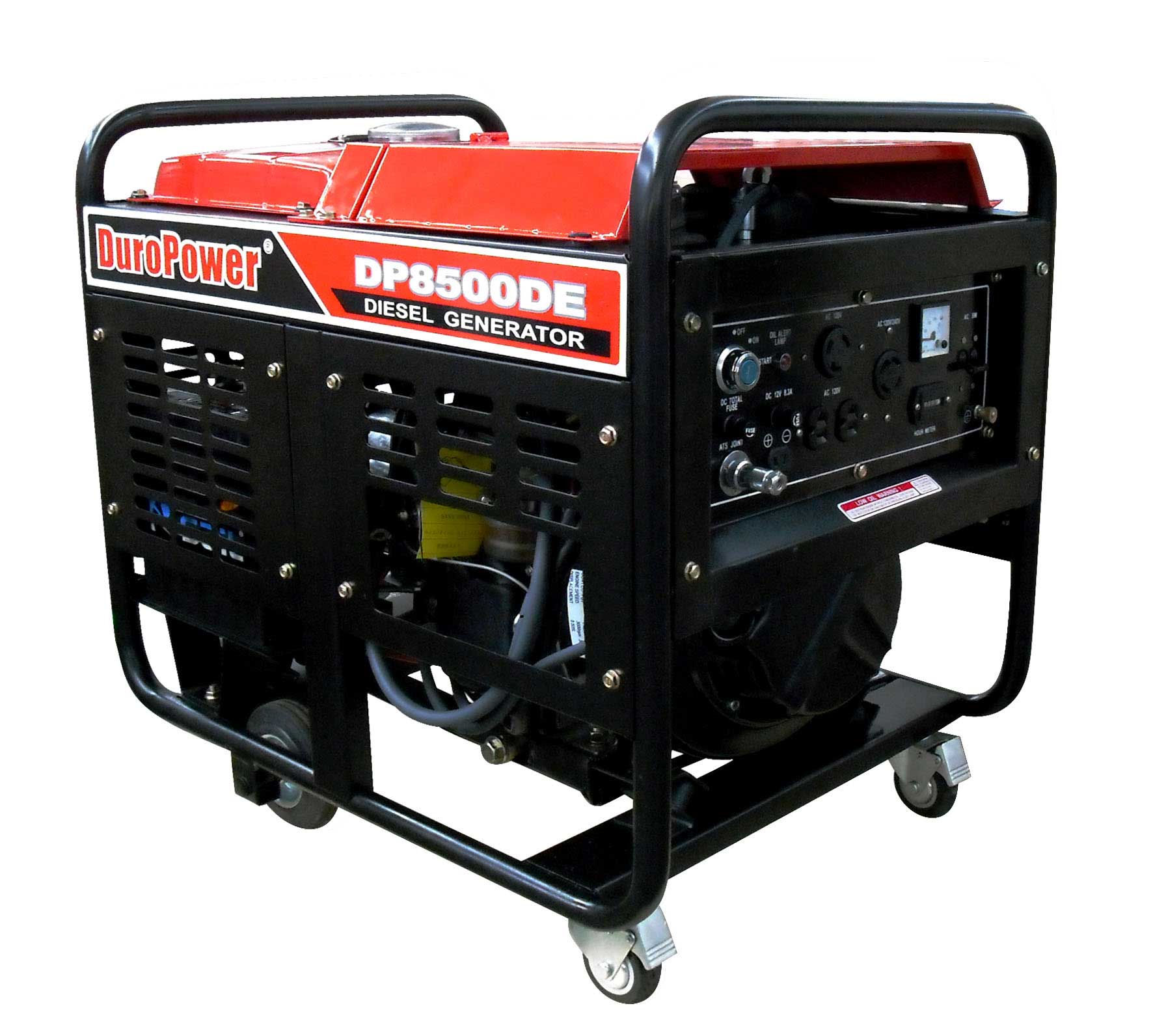

DP8500DE 8500w Diesel Generator

The DP8500DE Features & Specifications

1. 11.0HP Air Cooled Diesel Engine

DP505DE 11.0HP, 505cc, Single Cylinder, Air Cooled, Direct Injection, 4 Stroke, Diesel Engine With Low Oil Shutoff, Smooth Running & Remote E-Start & Easy Pull start back up.

2. Deluxe Heavy Duty Rigid Steel Frame

Deluxe designed Heavy Duty Rigid Steel Frame with Four Point Fully Isolated Motor Mounts for Smooth & Quiet Operation.

3. Long 8 -Hour Run Time

Long 8-Hour Run Time At Full Rated Output.

Long 12-Hour Run Time At 50% Rated Output.

4. 8500W Surge Output

Max. AC Output: 7500W

Rated AC Output: 6500W

5.        4.5 Gallon Tank With Gauge

All Steel 4.5 Gallon Fuel Tank With EZ-read Gauge

6.        Decibel: 90dBA At 10 Yards

Super Quiet Muffler With USDA-Qualified Spark Arrestor Reduces Engine Noise.

7.        Full Power Panel

Full Power Panel With Engine Shutoff Switch,ATS connector for DP40ATS, Voltmeter, Alert Lamp, AC Circuit Breaker, AC & DC Circuit Protector & Power Outlets.

8.        4 Pole Single Phase 120V AC & 1 Pole 120V/240V AC & 1 Pole 12V DC Output Generator

Fully Protected 2 Pole 120V/ 60Hz Max Current 20A AC Output (NEMA 5-20R)

1 Pole 120V 60Hz Max Current 30A AC Output (NEMA L5-30R)

1 Pole 120/240V Max Current 30AC Output (NEMA L14-30R)

1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables Included.

9.        Idle Control Saves Fuel

New Tech Throttle with Idle Control Saves Fuel & Reduces Noise & 20% fuel saving.

10.    Build in AVR ( Automatic Voltage Regulator) to provide clean power ,THD less than 10%

11.    4 x 4” Wheel / Kit – Handle Bar Included

Four 4" Wheels with EZ moving system & Instructions Included

12.    Easy Run A Variety Of Electric Appliances & Tools

Great for: Remote Areas, Construction Sites, Outdoor Activities, Emergency Power

13.    One Year/500 Hours Warranty For Residential.

Six Months/500 Hours Warranty for Commercial

Package Size:  31" x 23 1/2" x 33 1/2"

Gross Weight:  275 Lbs
