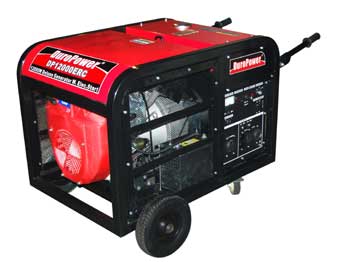

12000W Deluxe Industrial Grade Generator

With Electric Start

The DP12000ERC Features & Specifications

1.        20.0HP Air Cooled V-Twin Two Cylinder OHV Engine.

DP614E 20.0HP, 614cc, V-Twin Cylinder Air Cooled, OHV, 4 Stroke Engine With Low Oil Shutoff, Smooth Running, EZ Pull Starting & E-start.

2.        Heavy Duty Steel Frame with Deluxe Design

Heavy Duty Steel Frame With Four Point Fully Isolated Motor Mounts For Smooth & Quiet Operation.

3.        Long 8-Hour Run Time with full 8 gallon fuel tank.

Long 12-Hour Run Time At 100% Rated Output.

Long 8-Hour Run Time At 50% Rated Output.

4.  12500W Surge Output (Brush Alternator with AVR support clean Power )

Max. AC Output: 11500W

Rated AC Output: 11000W

4.        8 Gallon Tank With Gauge

All Steel 8 Gallon Fuel Tank with EZ-Read Gauge

5.        Decibel: 78dBA

Super Quiet Muffler With Spark Arrestor Reduces Engine Noise.

6.        Full Power Panel

Full Power Panel with Engine Shutoff Switch, Voltmeter, Hour meter, Voltage Selector, AC & DC Circuit Protector, Double AC Circuit Breaker & Power Outlets. The 12V36AH Battery for Elec. Start System will come with & installed in the unit.

7.        4 Pole Single Phase 120V AC & 1 Pole 120V/240V AC & 1 Pole 12V DC Output Generator

Fully Protected 2 Pole 120V/ 60Hz Max Current 20A AC Output (NEMA 5-20R)

1 Pole 120V/ 60Hz Max Current 30A AC Output (NEMA L5-30R)

1 Pole 120V/ 60Hz Max Current 50A AC Output (NEMA 10-50R)

1 Pole 120/240V Max Current 30A AC Output (NEMA 14-50R)

1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables Included.

8.        Idle Control Saves Fuel

       New Tech Throttle With Idle Control Saves Fuel & Reduces Noise

9.        Portability Wheel / Foldable Handle Bar Kit & Standard Accessories Included

Two 10” Wheels & Two 4” locked wheels, Two foldable Handle Bar & Instructions Included.

Tools: wrench for sparkle plug replacement, 10/13 & 12/14 two side wrench.

Plugs: 1 x NEMA L5-30P, 2 x NEMA5-20P, 1 x NEMA L14-30P, 1 x NEMA 10-50P

10.    Easy Run A Variety Of Electric Appliances & Tools

       Great for: Remote Areas, Construction Sites, Outdoor Activities, Emergency Power

11.    One Year/1000 Hours Warranty For Residential.

       Three Months/1000 Hours Warranty For Commercial

       Package Size:  43?×28?×36?
   Gross Weight:  495lbs.
