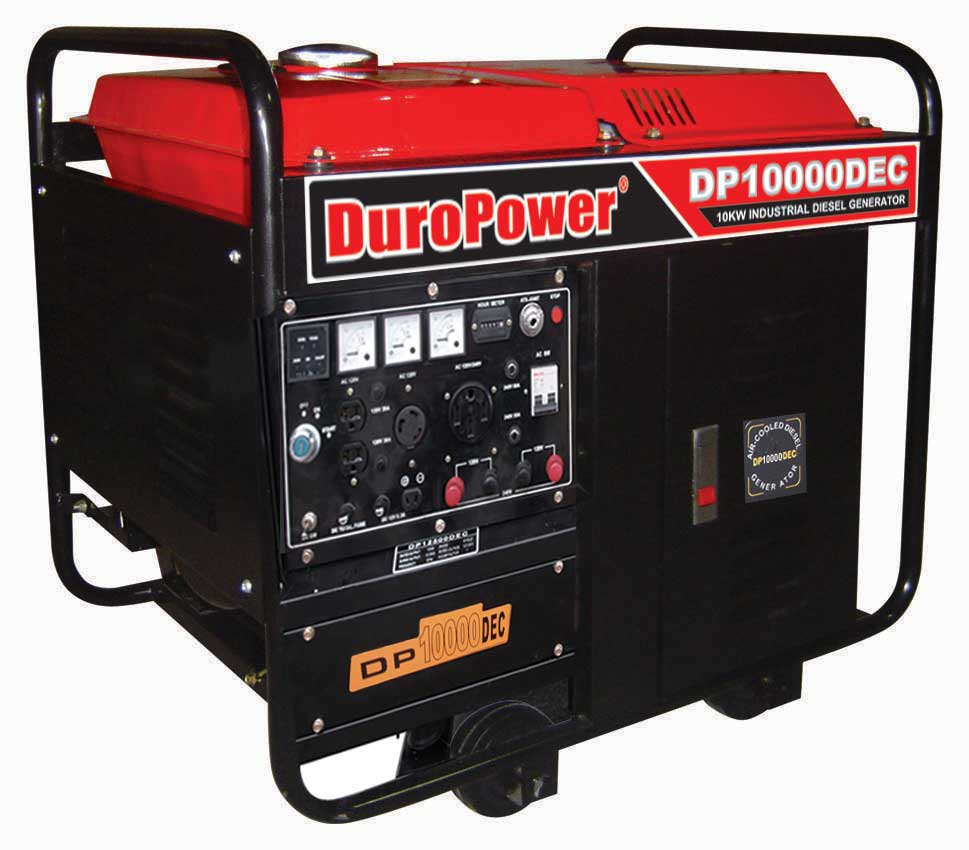

10000W Commercial Diesel Generator

The DP10000DEC Features & Specifications

1.        22.0HP 954cc Air Cooled Twin Cylinder Diesel Engine

22.0HP, 954cc, Twin Cylinder, Forced Air-Cooled, Direct Injection, 4 Stroke, Diesel Engine With Low Oil Shutoff, Smooth Running & Elec. Start.

2.        Heavy Duty Rigid Steel Frame

Heavy Duty Rigid Steel Frame With Four Point Fully Isolated Motor Mounts For Smooth & Quiet Operation.

3.        Long 12-Hour Run Time with fuel displacement 58.22 cu. In

Long 10-Hour Run Time At Full Rated Output.

Long 12-Hour Run Time At 50% Rated Output.

4.        10000W Surge Output with self-excitation and constant voltage (AVR).

Max. AC Output: 9000W

Rated AC Output: 8000W

5.        10.0 Gallon Tank With Gauge

All Steel 10.0 Gallon Fuel Tank

6.        Decibel: < 75dBA

Super Quiet Muffler With Spark Arrestor Reduces Engine Noise.

7.        Full Power Panel

Full Power Panel With Engine Shutoff Switch, Voltmeter, Hour meter, Ampere Meter, Frequency Meter, Fuel Meter, Normal Lamp, Water Temperature Lamp, Generator Temperature Lamp, Oil Alert Lamp, Heat Switch, AC & DC Terminal, AC Circuit Breaker, AC & DC Protector & Power Outlets, ATS connector etc.

8.        3 Pole Single Phase 120V AC & 2 Pole 120V/240V AC & 1 Pole 12V DC Output Generator

Fully Protected:

2 Pole 120V/ 60Hz Max Current 20A AC Output (NEMA 5-20R)

1 Pole 120V/ 60Hz Max Current 30A AC Output (NEMA L5-30R)

1 Pole 120/240V Max Current 50A AC Output (NEMA 14-50R)

1 Pole 120/240V Max Current 30A AC Output (NEMA L14-30R)

1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables Included.

9.        Idle Control Saves Fuel

New Tech Throttle With Idle Control Saves Fuel & Reduces Noise

10.    Portability Wheel / Handle Bar Kit Included

Four 4” Wheels Included

11.    Easy Run A Variety Of Electric Appliances & Tools

Great for: Remote Areas, Construction Sites, Outdoor Activities, Emergency Power

12.    One Year/1000 Hours Warranty For Residential.

Three Months/1000 Hours Warranty for Commercial

Package Size:  35?×25?×30?

Gross Weight:  375 lbs.
