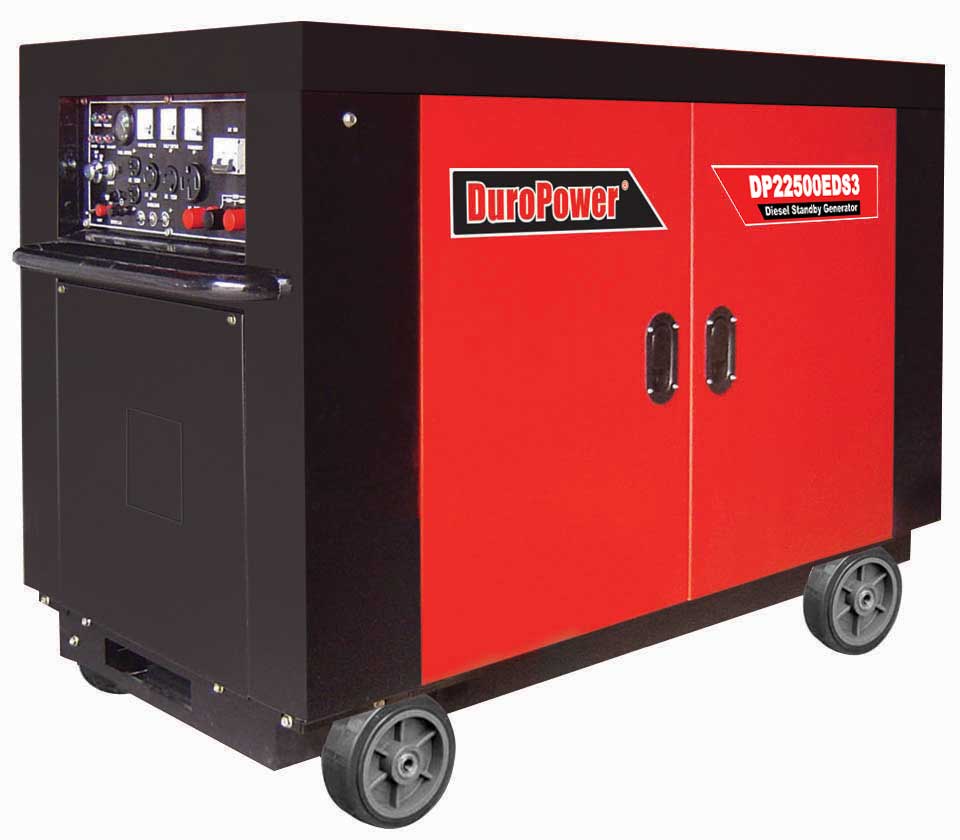

DuroPower 22500W Silent Diesel Generator

With 120/208V 60Hz Three Phase

The DP22500EDS Features & Specifications

1.        39.0HP Air Cooled Diesel Engine (EPA  APPROVED)

39.0HP, 1809cc, Three Cylinder, Water Cooled, Direct Injection, 4 Stroke, Diesel Engine With Low Oil Shutoff, E-start.

2.        Totally Enclosed Heavy Duty Rigid Steel Frame with water approved.

Heavy Duty Rigid Steel Frame With Four Point Fully Isolated Motor Mounts For Smooth & Quiet Operation.

3.        Long 8-Hour Run Time

Long 8-Hour Run Time At Full Rated Output.

Long 12-Hour Run Time At 50% Rated Output.

4.        22500W Surge Output at 208V

Max. AC Output: 22500W

Rated AC Output: 20000W

5.        10.0 Gallon Tank With Gauge

All Steel 10.0 Gallon Fuel Tank With EZ-read Gauge

6.        Decibel: 72dBA with Full load at 7 meter.

Super Quiet Muffler With USDA-Qualified Spark Arrestor Reduces Engine Noise.

7.        Full Power Panel

Full Power Panel With Engine Shutoff Switch, Voltmeter, Ampere Meter, Frequency Meter, Fuel Meter, Normal Lamp, Water Temperature Lamp, Generator Temperature Lamp, Oil Alert Lamp, Heat Switch, AC & DC Terminal, AC Circuit Breaker, ATS Receptacle, Emergency Switch, AC & DC Circuit Protector & Power Outlets.

8.        2 Pole 120V AC & 2 Pole 208V AC & 1 Pole 12V DC Output Generator

Fully Protected:

2 Pole 120V 60Hz Max. Current 20A AC Output (NEMA 5-20R)

2 Pole 208V Max. Current 50A AC Output (NEMA 10-50R)

120V/208V power output terminals

1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables Included.

9.        Idle Control Saves Fuel

New Tech Throttle With Idle Control Saves Fuel & Reduces Noise

10.    Portability 8” Wheels

11.    Easy Run A Variety Of Electric Appliances & Tools

Great for: Remote Areas, Construction Sites, Outdoor Activities, Emergency Power

12.    One Year Warranty For Residential.

Package Size:  73″×33″×48″    Gross Weight:  1098 lbs.
