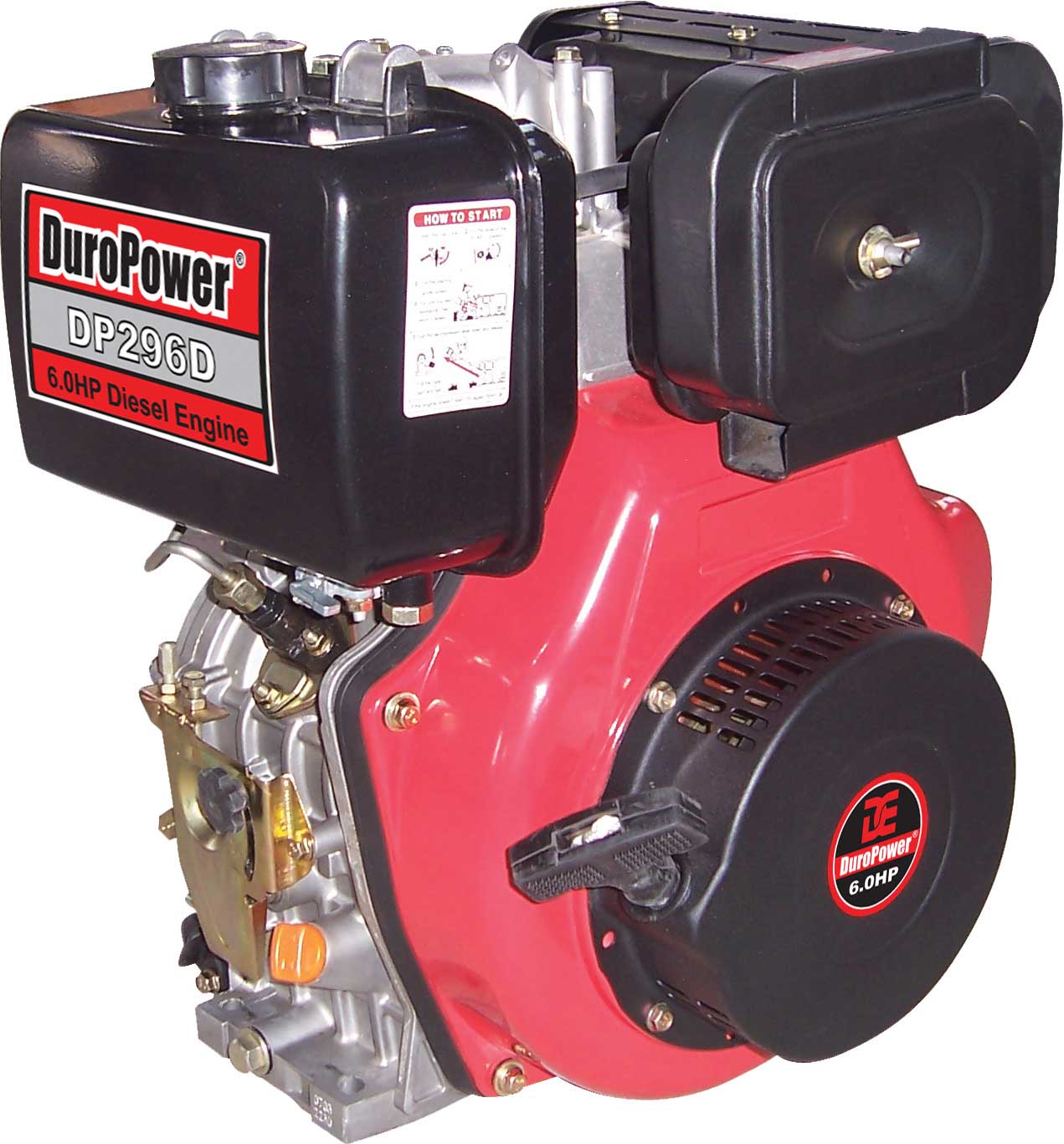

DP296D 6.0HP Diesel Engine

Features & Specifications

1)   Model Number: DP296D  Shaft ¾” x 2 7/16”

2)   Type: 4 Stroke, single cylinder air cooled direct injection diesel powered engine. Cast Iron Sleeve.

3)   Displacement: 296cc

4)   Compression ratio: 20:1

5)   Max Power Output: 6.0HP/3600 RPM.

6)   Max Torque: 16.0N.m/2500 RPM

7)   0#-10# Light Diesel Fuel,

8)   Start Mode: EZ Pull Start

9)   Air Cleaner: Semi-Dry

10)   Fuel Tank Capacity: 0.8 Gallon

11)  Fuel Consumption: 283g/HP-hour

12)   Engine oil Capacity: 0.24 Gallon

13)     Approx. mounting Base Dim.: 6.38” x 3.15”-3.35”

14)  Full one year warranty

15)  Packaging Size: 20”x 18” x 20”

       Gross Weight: 69 Lbs
