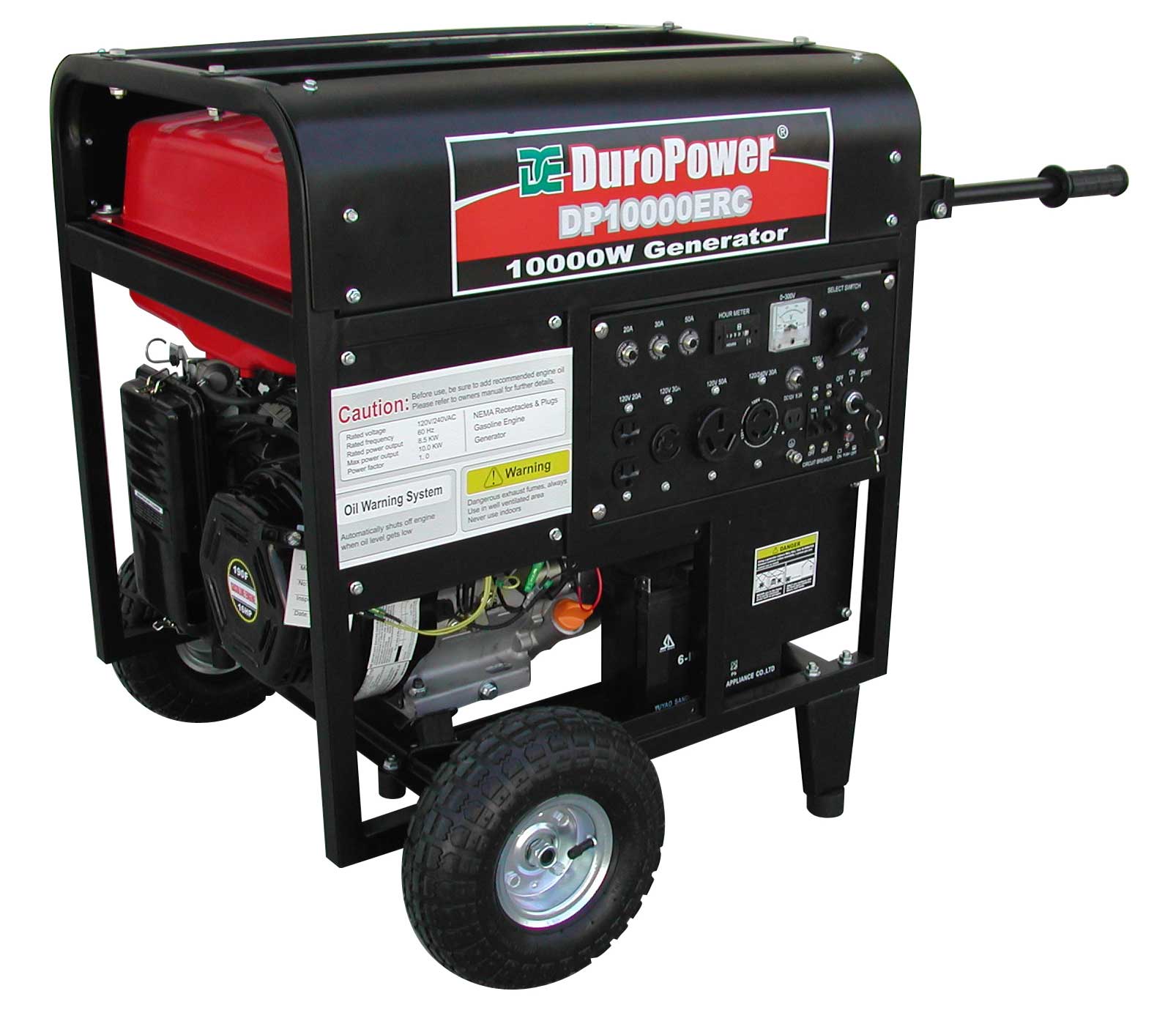

10000W Deluxe Industrial Generator

With Electric Start

The DP10000ERC Features & Specifications

1.        16.0HP Air Cooled OHV Engine ( 2007 EPA & CARB Certificates)

  16.0HP, 420cc, Air Cooled, OHV, 4 Stroke Engine With Low Oil Shutoff, Smooth Running, EZ Pull Starting & E-start.

2.        Heavy Duty Steel Frame with Deluxe Design

Heavy Duty Steel Frame With Four Point Fully Isolated Motor Mounts For Smooth & Quiet Operation.

3.        Long 16-Hour Run Time

Long 16-Hour Run Time At 100% Rated Output.

Long 24-Hour Run Time At 50% Rated Output.

4.        10000W Surge Output

Max. AC Output: 9250W

Rated AC Output: 8750W

5.        13 Gallon Tank With Gauge

All Steel 13 Gallon Fuel Tank with EZ-Read Gauge

6.        Decibel: 72dBA

Super Quiet Muffler With Spark Arrestor Reduces Engine Noise.

7.        Full Power Panel

Full Power Panel with Engine Shutoff Switch, Voltmeter, Hour meter, Voltage Selector, AC & DC Circuit Protector, AC Circuit Breaker & Power Outlets.

8.        4 Pole Single Phase 120V AC & 1 Pole 120V/240V AC & 1 Pole 12V DC Output Generator

Fully Protected 2 Pole 120V/ 60Hz Max. Current 20A AC Output (NEMA 5-20R)

1 Pole 120V/ 60Hz Max. Current 30A AC Output (NEMA L5-30R)

1 Pole 120V/ 60Hz Max. Current 50A AC Output (NEMA 10-50R)

1 Pole 120/240V Max. Current 30A AC Output (NEMA L14-30R)

1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables Included.

9.        Idle Control Saves Fuel

       New Tech Throttle With Idle Control Saves Fuel & Reduces Noise

10.    Portability Wheel / Foldable Handle Bar Kit Included

       Two 10” Wheels & Handle Bar, Instructions Included.

11.    Easy Run A Variety Of Electric Appliances & Tools

       Great for: Remote Areas, Construction Sites, Outdoor Activities, Emergency Power

12.    One Year/1000 Hours Warranty For Residential.

       Three Months/1000 Hours Warranty for Commercial.

Package Size:  33″×28″×30″
Gross Weight:  250 lbs.
