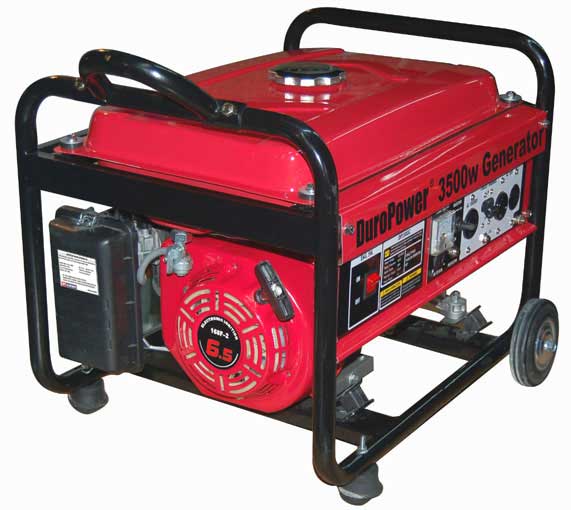

3500W Mobile Electric Generator

The DP3500C Features & Specifications

1.        6.5HP Air Cooled OHV Engine

DP200 6.5HP, 196cc, Air Cooled, OHV, 4 Stroke Engine with low oil shut off, Smooth Running, EZ Pull Starting.

2.        Heavy Duty Steel Frame

Heavy Duty Steel Frame with four fully isolated Motor Mounts for Smooth & Quiet Operation.

3.        Long 8-Hour Run Time

Long 8-Hour Run Time At Full Rated Output.

Long 11-Hour Run Time At 50% Rated Output.

4.        3500W Surge

Max. AC Output: 3500W

Rated AC Output: 3000W

5.        4.0 Gallon Tank With Gauge

All Steel 4.0 Gallon Fuel Tank With EZ-read gauge

6.        Decibel: 67dBA

Super Quiet Muffler With Spark Arrestor Reduces Engine Noise.

7.        Full Power Panel

Full Power Panel With Engine Shutoff , Voltmeter, 120/240V Voltage Selector, AC&DC Circuit Breaker & Power Outlets.

8.        2 Pole Single Phase 120V AC & 1 Pole Single Phase 120/240V AC Output & 1 Pole 12V DC Generator

Fully Protected

1 Pole 120V/60Hz Max Current 20A AC Output (NEMA 5-15R)

1 Pole 120V/60Hz Max Current 30A AC Output (NEMA L5-30R)

1 Pole 120/240V/60Hz Max Current 15A AC Output (NEMA L14-30R)

1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables Included.

9.        Idle Control Saves Fuel

New Tech Throttle With Idle Control Saves Fuel & Reduces Noise

10.    Portability Wheel Kit Included

Two 5” Wheels & Instructions Included.

11.    Easy Run A Variety Of Electric Appliances & Tools

Remote Areas, Construction Sites, Outdoor Activities, Emergency Power

12.    One Year Warranty For Residential.

Three Months Warranty For Commercial.

Package Size: 28″×22″×23″

Gross Weight: 110 lbs.
