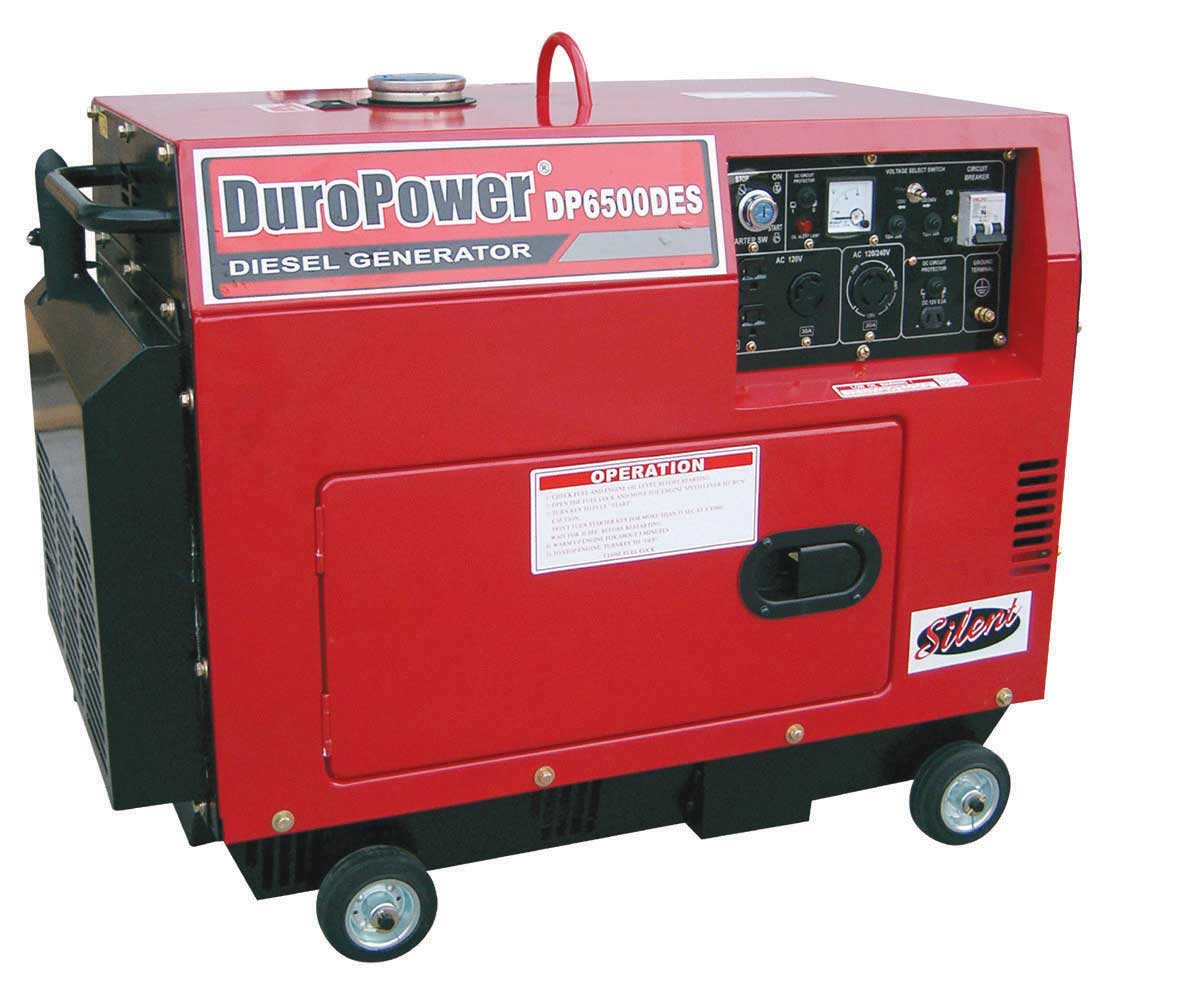

6500W Economy Diesel Silent Generator

The DP6500DES Features & Specifications

1. 9.0HP Air Cooled Diesel Engine

9.0HP, 418cc, Single Cylinder, Air Cooled, Direct Injection, 4 Stroke, Diesel Engine With Low Oil Shutoff, Smooth Running & E-start with pull start back up.

2.  Totally Enclosed Heavy Duty Rigid Steel Frame

Heavy Duty Rigid Steel Frame With Four Point Fully Isolated Motor Mounts For Smooth & Quiet Operation.

3.  Long 8-Hour Run Time

Long 8-Hour Run Time At Full Rated Output.

Long 12-Hour Run Time At 50% Rated Output.

4.  6500W Surge Output: Automatic Voltage Regulator, THD< 18%, PF=1.0

Max. AC Output: 6500W

Rated AC Output: 5750W

5.  4.0 Gallon Tank with Gauge

All Steel 4.0 Gallon Fuel Tank With EZ-read Gauge

6.   Decibel: 66dBA

Super Quiet Muffler With USDA-Qualified Spark Arrestor Reduces Engine Noise.

7.   Full Power Panel

Full Power Panel With Engine Shutoff Switch, Voltmeter, Hour meter, Voltage Selector, Oil Alert Lamp, AC Circuit Breaker, AC & DC Circuit Protector & Power Outlets.

8.   3 Pole Single Phase 120V AC & 1 Pole 120V/240V AC & 1 Pole 12V DC Output Generator

Fully Protected 2 Pole 120V/ 60Hz Max. Current 20A AC Output (NEMA 5-20R)

1 Pole 120V/ 60Hz Max. Current 30A AC Output (NEMA L5-30R)

1 Pole 120/240V Max. Current 27A AC Output (NEMA L14-30R)

1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables Included.

9.  Idle Control Saves Fuel

New Tech Throttle With Idle Control Saves Fuel & Reduces Noise

10.  Portability Wheel / Handle Bar Kit Included

Four 4” Wheels & Handle Bar, Instructions Included.

11.   Easy Run A Variety Of Electric Appliances & Tools

Great for Residential Emergency Power or small Business Power Back Up

12.  One Year/500 Hours Warranty For Residential. Three Months/500 Hours Warranty For Commercial.

        Package Size: 36”x21”x29”        Shipping Weight: 396 Lbs
