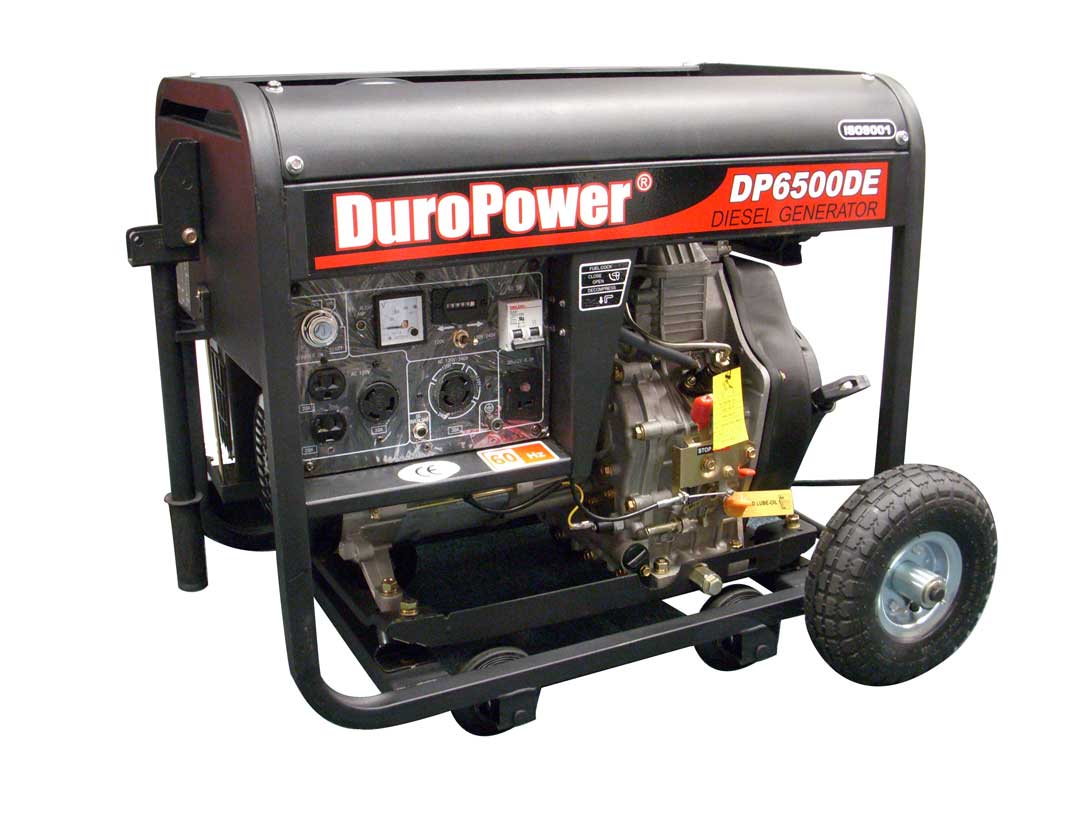

6500W Elec. Start Diesel Generator

The DP6500DE Features & Specifications

1.        9.0HP Air Cooled Diesel Engine ( EPA certified )

  9.0HP, 418cc,Single Cylinder, Air Cooled, Direct Injection, 4 Stroke, Diesel Engine With Low Oil Shutoff, Smooth Running & E-start.

2.        Heavy Duty Rigid Steel Frame

Heavy Duty Rigid Steel Frame With Four Point Fully Isolated Motor Mounts For Smooth & Quiet Operation.

3.        Long 8-Hour Run Time

Long 6-Hour Run Time At Full Rated Output.

Long 10-Hour Run Time At 50% Rated Output.

4.        6500W Surge Output

Max. AC Output: 6500W

Rated AC Output: 5500W

5.        3.3 Gallon Tank With Gauge

All Steel 3.3 Gallon Fuel Tank With EZ-read Gauge

6.        Decibel: 72dBA

Super Quiet Muffler With USDA-Qualified Spark Arrestor Reduces Engine Noise.

7.        Full Power Panel

Full Power Panel With Engine Shutoff Switch, Voltmeter, Hour meter, Voltage Selector, Alert Lamp, AC Circuit Breaker, AC & DC Circuit Protector & Power Outlets.

8.        3 Pole Single Phase 120V AC & 1 Pole 120V/240V AC & 1 Pole 12V DC Output Generator

Fully Protected 2 Pole 120V/ 60Hz Max. Current 20A AC Output (NEMA 5-20R)

1 Pole 120V/ 60Hz Max. Current 30A AC Output (NEMA L5-30R)

1 Pole 120/240V Max. Current 27A AC Output (NEMA L14-30R)

1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables Included.

9.        Idle Control Saves Fuel

New Tech Throttle With Idle Control Saves Fuel & Reduces Noise

10.    Portability Wheel / Kit Included

Four 4” Wheels & Instructions Included.

11.    Easy Run A Variety Of Electric Appliances & Tools

Great for: Remote Areas, Construction Sites, Outdoor Activities, Emergency Power

12.    One Year/500 Hours Warranty For Residential. Three Months/500 Hours Warranty For Commercial.

       Package Size:  31″×22″×29″ Gross Weight:  200 lbs.
