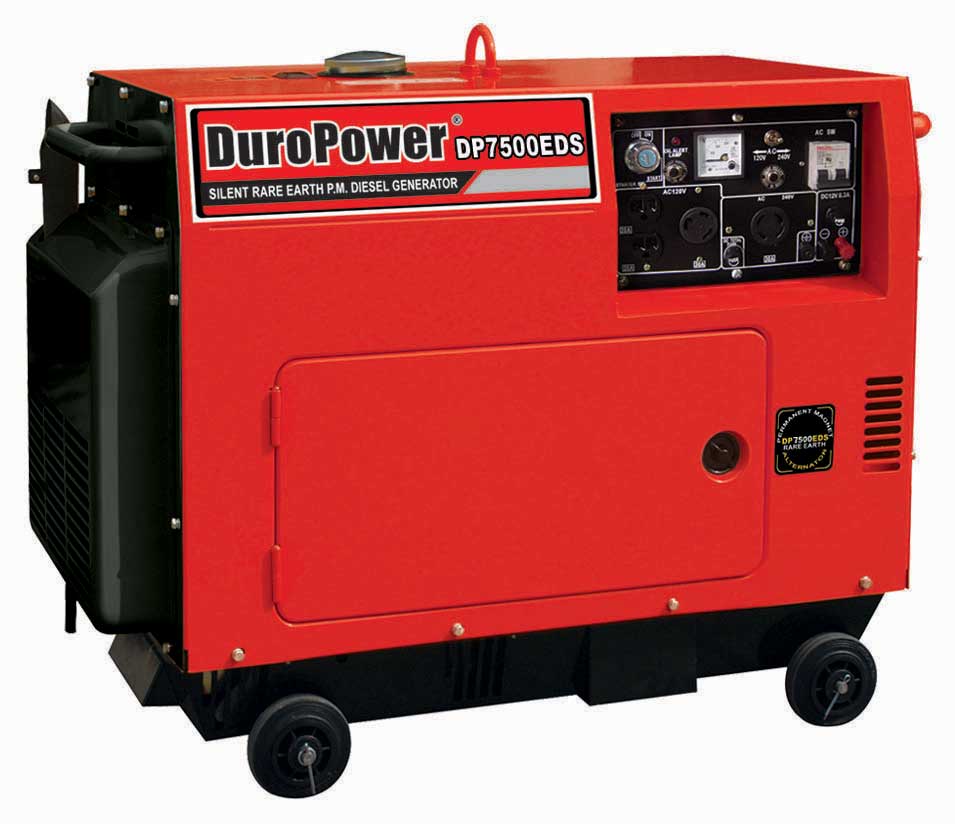

7500W Silent Rare-Earth P.M. Diesel Generator

The DP7500EDS Features & Specifications

1.        9.0HP Air Cooled Diesel Engine

9.0HP, 418cc, Single Cylinder, Air Cooled, Direct Injection, 4 Stroke, Diesel Engine With Low Oil Shutoff, Smooth Running & E-start.

2.        Totally Enclosed Heavy Duty Rigid Steel Frame

Heavy Duty Rigid Steel Frame With Four Point Fully Isolated Motor Mounts For Smooth & Quiet Operation.

3.        Long 8-Hour Run Time

Long 8-Hour Run Time At Full Rated Output.

Long 10-Hour Run Time At 50% Rated Output.

4.        7500W Surge Output: Rare-Earth P.M. generator provide more than over 10% power.

Max. AC Output: 7500W

Rated AC Output: 6500W

5.        4.5 Gallon Tank With Gauge

All Steel 4.5 Gallon Fuel Tank With EZ-read Gauge

6.        Decibel: 66dBA

Super Quiet Muffler With USDA-Qualified Spark Arrestor Reduces Engine Noise.

7.        Full Power Panel

Full Power Panel With Engine Shutoff Switch, Voltmeter, Voltage Selector, Oil Alert Lamp, AC Circuit Breaker, AC & DC Circuit Protector & Power Outlets.

8.        3 Pole Single Phase 120V AC & 1 Pole 120V/240V AC & 1 Pole 12V DC Output Generator

Fully Protected 2 Pole 120V/ 60Hz Max. Current 20A AC Output (NEMA 5-20R)

1 Pole 120V/ 60Hz Max. Current 30A AC Output (NEMA L5-30R)

1 Pole 120/240V Max. Current 27A AC Output (NEMA L14-30R)

1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables Included.

9.        Idle Control Saves Fuel

New Tech Throttle With Idle Control Saves Fuel & Reduces Noise

10.    Diesel Rare-Earth Permanent Magnet Generator provide super clean power THD<5% w/o AVR

11.    Portability Wheel / Handle Bar Kit Included

Four 4” Wheels & Handle Bar, Instructions Included.

12.    Easy Run A Variety Of Electric Appliances & Tools

Great for: Remote Areas, Construction Sites, Outdoor Activities, Emergency Power

13.    One Year/1000 Hours Warranty For Residential.

Three Months/1000 Hours Warranty For Commercial.

Package Size:  39″×24″×33″

Gross Weight:  396 lbs.
