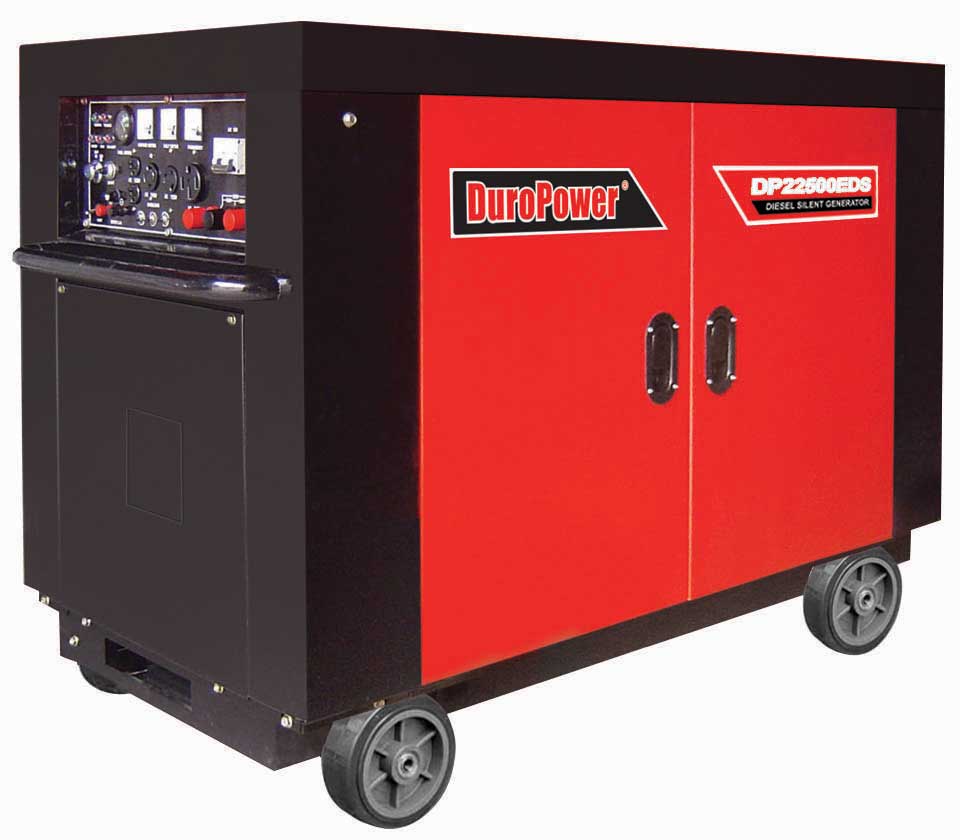

22500W Silent Diesel Generator

The DP22500EDS Features & Specifications

1.        39.0HP Water Cooled Diesel Engine ( EPA  APPROVED)

  39.0HP, 1809cc, Three Cylinder, Water Cooled, Direct Injection, 4 Stroke,3600RPMS Diesel Engine With Low Oil Shutoff, Smooth Running & E-start.

2.        Totally Enclosed Heavy Duty Rigid Steel Frame

Heavy Duty Rigid Steel Frame With Four Point Fully Isolated Motor Mounts For Smooth & Quiet Operation.

3.        Long 8-Hour Run Time

Long 8-Hour Run Time At Full Rated Output.

Long 12-Hour Run Time At 50% Rated Output.

4.        22500W Surge Output

Max. AC Output: 22500W

Rated AC Output: 20000W

5.        10.0 Gallon Tank With Gauge

All Steel 10.0 Gallon Fuel Tank With EZ-read Gauge

6.        Decibel: 72dBA

Super Quiet Muffler With USDA-Qualified Spark Arrestor Reduces Engine Noise.

7.        Full Power Panel

Full Power Panel With Engine Shutoff Switch, Voltmeter, Ampere Meter, Frequency Meter, Fuel Meter, Normal Lamp, Water Temperature Lamp, Generator Temperature Lamp, Oil Alert Lamp, Heat Switch, AC & DC Terminal, AC Circuit Breaker, ATS Receptacle, Emergency Switch, AC & DC Circuit Protector & Power Outlets.

8.        2 Pole Single Phase 120V AC & 2 Pole 120V/240V AC & 1 Pole 12V DC Output Generator

Fully Protected 2 Pole 120V/ 60Hz Max. Current 20A AC Output (NEMA 5-20R)

2 Pole 120/240V Max. Current 50A AC Output (NEMA 14-50R)

1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables Included.

9.        Idle Control Saves Fuel

New Tech Throttle With Idle Control Saves Fuel & Reduces Noise

10.    Portability Wheel / Handle Bar Kit Included

Four 8” Wheels & Handle Bar, Instructions Included.

11.    One Year/1000 Hours Warranty For Residential.

Three Months/1000 Hours Warranty For Commercial.

Package Size:  73″×33″×48″

Gross Weight:  1058 lbs.
